6-20mL 20mm Crimp-Top Headspace ND20

Master the core technology of production vials

Product Description:

1.Bevelled top design ,

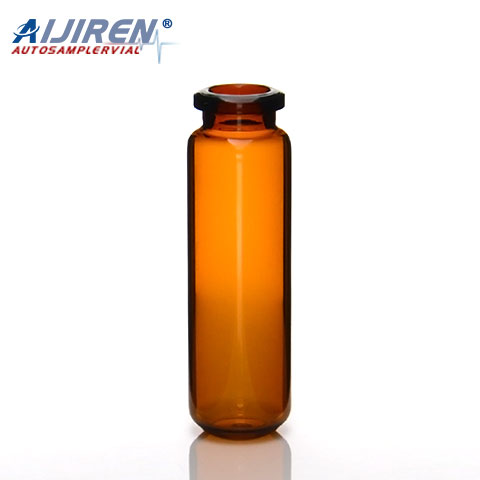

2.Available with amber or clear vial.

3.Available with 20ml or 10ml vial.
4.Magnetic Aluminum cap suit for CTC instrument.
5.Butyl/PTFE, Pharma-Fix-Liner (Butyl/PTFE), Silicone/PTFE are all Available
6.Rounded or flat bottom profiles are available for accurate instrument compatibility.
7.6ml crimp top headspace vial with matched
20mm Aluminum & Magnetic Aluminum cap, 20mm PTFE/rubber septa

Features:

1).Crimp caps provide a consistently secure seal

2).Beveled top for maximum secure seal

3).Choice of a pressure safety release cap at 45 psi

4).10/20mL Clear /Amber Precision Crimp Headspace Vial,
Flat/Round Bottom, 22.5*46mm .
5).PTFE/Silicone Septa Φ20*3mm Temperature Resistant
-60℃-200℃ with 9mm thread.
6).Crimp-top Aluminum Cap, 10mm Centre Hole Φ20m

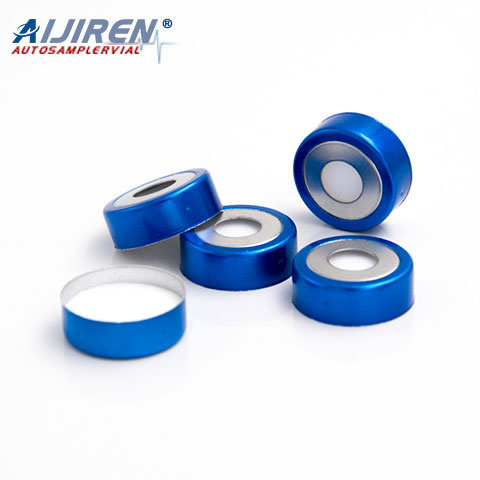

7).Crimp-top Blue Magnetic Aluminum cap, 10mm Centre Hole Φ20mm available

About 6mL vials:
1).6ml crimp vials ,22*38mm
2).suitable metrohm instruments
3).Available with amber or clear vial

Technical parameter:

1.20mm Headspace Crimp Vials ND20


Part No.	VH0613	VH1017 (Economy) VH1013	VHR1017	VH1035
Description	6mL Clear Crimp-top Headspace Vial, Flat Bottom, 22*38mm	10mL Clear Crimp-top Headspace Vial, Flat Bottom, 22.5*46mm	10mL Clear Crimp-top Headspace Vial, Round Bottom 22.5*46mm	10mL Amber Crimp-top Headspace Vial, Flat Bottom, 22.5*46mm

Part No.	VH2017 (Economy) VH2013	VHR2017 (Economy) VHR2013	VH2035	VHR2035
Description	20mL Clear Crimp-top Headspace Vial, Flat Bottom, 22.5*75.5mm	20mL Clear Crimp-top Headspace Vial, Round Bottom, 22.8*75.5mm	20mL Amber Crimp-top Headspace Vial, Flat Bottom, 22.5*75.5mm	20mL Amber Crimp-top Headspace Vial, Round Bottom, 22.5*75.5mm

2.20mm Crimp-top Aluminum Caps with Septa


Part No.	SC201201	SBC201202	MSC206201	MSC207201	SCS201201
Description	White PTFE/White Silicone Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole	White PTFE/White Silicone Septa, 20mm Crimp-top Blue Magnetic Aluminum Cap, 10mm Centre Hole	Grey PTFE/Moulded Butyl Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole	Grey PTFE/Pharma-Fix Butyl Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole	White PTFE/White Silicone Septa 20mm Pressure Release Cap, 7.8mm Centre Hole

3.20mm Crimper&Decrimper


Part No.	AJRC20	AJRC20-II（Agilent TYPE）	AJRC20-W(Economy TYPE)	AJRD20-W(Economy TYPE)
Description	Hand Crimper, for use with 20mm crimp seals, 1 pcs/pack	Hand Crimper, for use with 20mm crimp seals, 1 pcs/pack	Hand Crimper, for use with 20mm crimp seals, 1 pcs/pack	Hand Decrimper, for use with 20mm cap opener, 1 pcs/pack

PRODUCT SHOW:

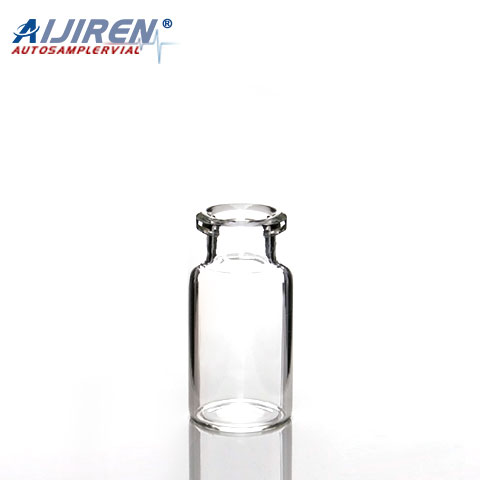

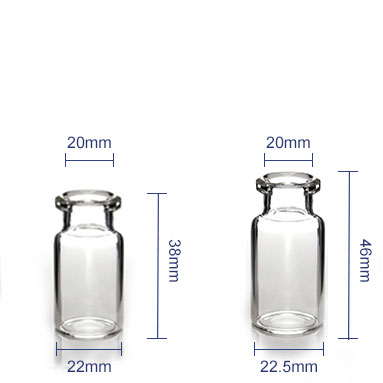

6mL Clear Crimp-top Headspace Vial, Flat Bottom, 22*38mm 10mL Crimp-top Headspace Vial, Flat Bottom, 22.5*46mm

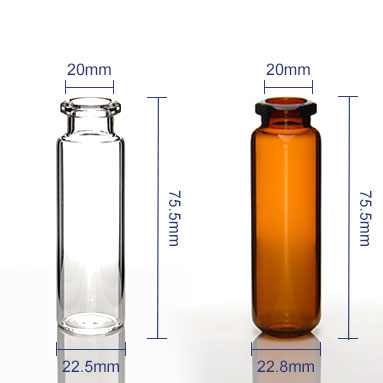

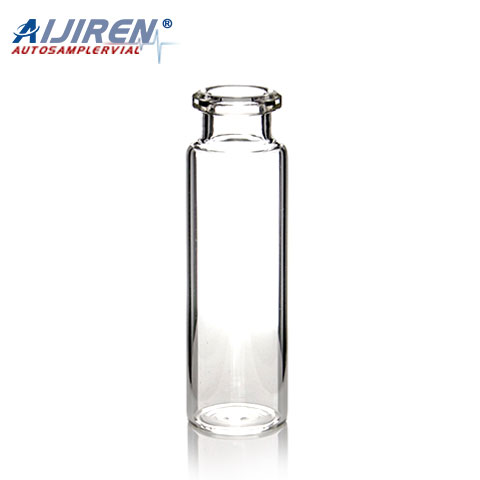

20mL Crimp-top Headspace Vial, Flat Bottom, 22.5*75.5mm 20mL Crimp-top Headspace Vial, Round Bottom, 22.8*75.5mm

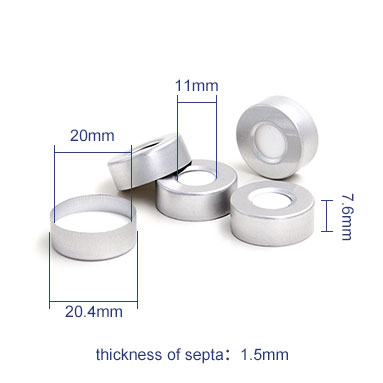

White PTFE/White Silicone Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole Temperature Resistant -60℃-200℃

Application:

According to different material, they can be devided into two types. One is domestic borosilicate,the other one is USP type1. Which can meet the requirement of different customers.
