10-20mL 18mm Screw Thread Headspace ND18

Master the core technology of production vials

Product Description:

1.A rounded bottom is more sturdy and thus more resistant to
the high pressure within the vial during the heating process.
2.Available with amber or clear vial

3.Available with 20ml or 10ml vial

Features:

1) Screw top vials and caps are recommended for the tightest seal and the most
reproducibleheadspace results.

2) CombiPAL headspace vials and caps are precision-thread, making them an
excellent choice for dependability and ease-of-use.

3) They are ideal for applications inthe environmental, food and beverage,
industrial hygiene, drug analysis, and clinical chemistry industries.

Technical parameter:

1.18mm Screw Thread Headspace Vials ND18


Part No.	VA101	VA1035	VA201	VA2035
Description	10mL Clear Precision Screw Headspace Vial, Round Bottom, 22.5*46mm	10mL Amber Precision Screw Headspace Vial, Round Bottom, 22.5*46mm	20mL Clear Precision Screw Headspace Vial, Round Bottom, 22.5*75.5mm	20mL Amber Precision Screw Headspace Vial, Round Bottom, 22.5*75.5mm

2.18mm Screw Thread Headspace Caps With Septa


Part No.	SACA001	SACA002-II	SACA003-II	CA001	SA001	SA002-II	SA003-II
Description	Red PTFE/White Silicone Septa, 13mm Black Screw Polypropylene Cap, 8.5mm Centre Hole	Red PTFE/White Silicone Septa, 18mm Magnetic Precision Screw Metal Cap, 8mm Centre Hole	White PTFE/Blue Transparent Silicone Septa, 18mm Magnetic Precision Screw Metal Cap, 8mm Centre Hole	Magnetic Precision Screw Metal Cap, 8mm Centre Hole Φ18mm	Blue PTFE/White Silicone Septa Φ 17.5*1.5mm	Red PTFE/White Silicone Septa Φ 17.5*1.3mm Easy to puncture NEW TYPE	White PTFE/Blue Transparent Silicone Septa Φ 17.5*1.3mm Easy to puncture NEW TYPE

PRODUCT SHOW:

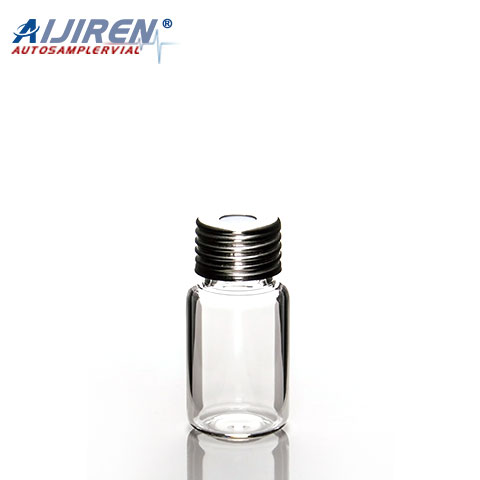

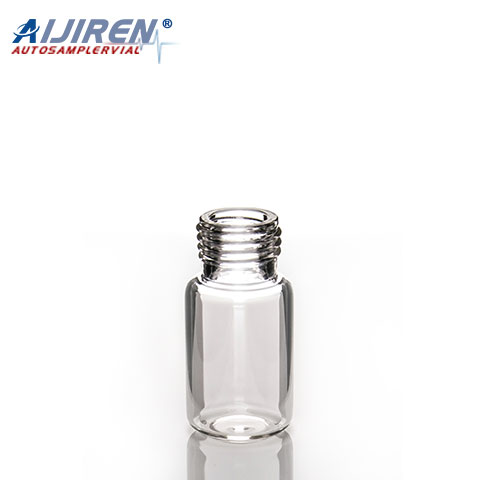

10mL Precision Screw Headspace Vial, Round Bottom, 22.5*46mm

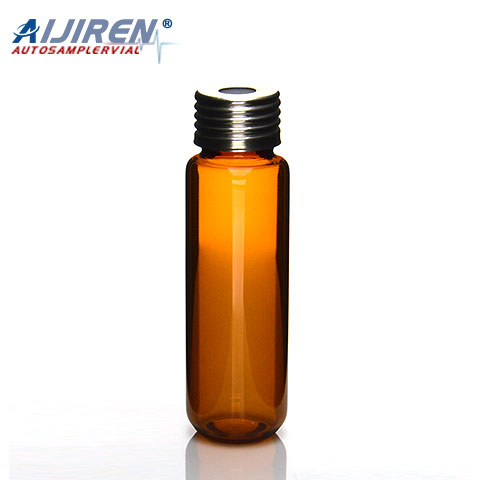

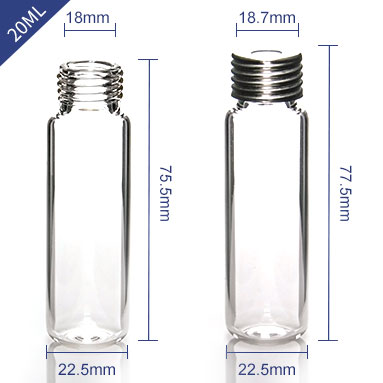

20mL Precision Screw Headspace Vial, Round Bottom, 22.5*75.5mm

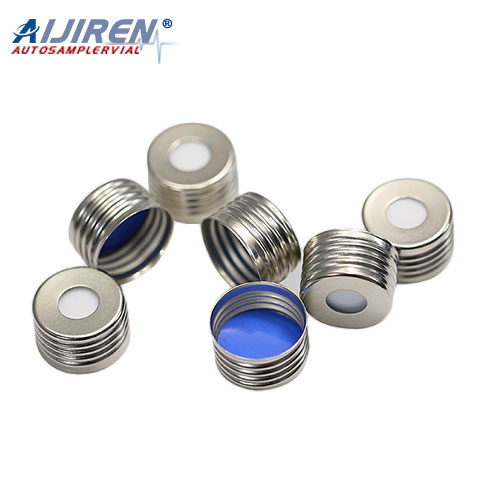

PTFE/Silicone Septa, 18mm Magnetic Precision Screw Metal Cap, 8mm Centre Hole

Application:

According to different material, they can be devided into two types. One is domestic borosilicate,the other one is USP type1. Which can meet the requirement of different customers.

PACKING

Inner packing:shrink plastic; outer packing:carton

Vials with PP Box

Caps with Septa Packing

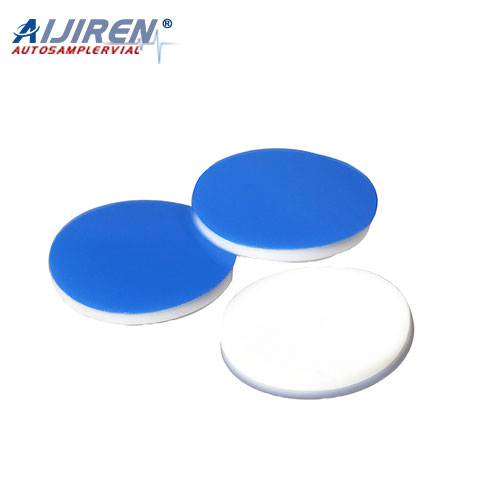

Septa Packing
