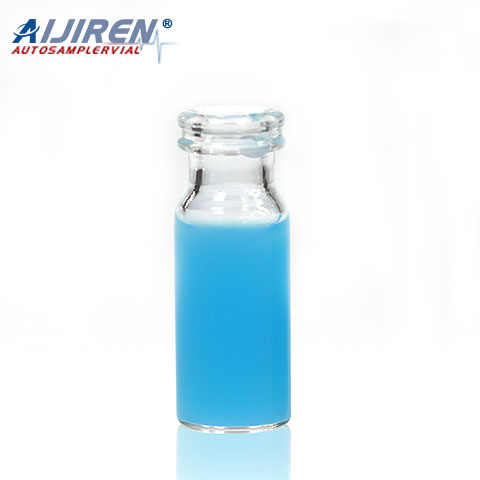

1.5mL 11mm Snap Ring Vials ND11

Master the core technology of production vials

Product Description:

1.Vials can also be sealed with an Aluminum Crimp Seal ND11.
2.Available with Natural,bule or blue snap ring caps

3.Available as closed top screw seals or with centre hole.
4.Vials with integrated Micro-Insert are available
5.Plastic Micro-Vials ND11

Features:

1) Vials have a 40% larger opening than standard aluminum seal vials
for easier sample filling and to reduce the chance of bent or broken needles during sampling

Technical parameter:

1.11mm Snap Ring Vials ND11


Part No.	V1017 (Economy) V1013	V1027 (Economy) V1023	V1035	V1045

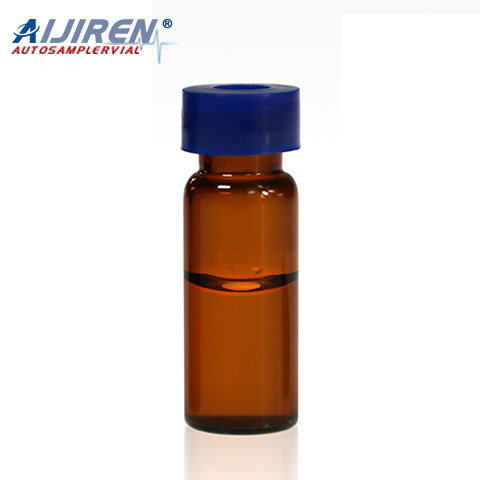

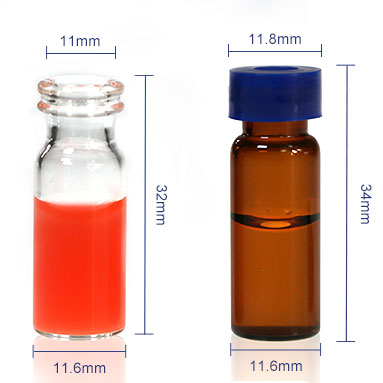

Description	1.5mL Clear Snap Ring Vial, 11.6*32mm	1.5mL Clear Snap Ring Vial w/Write-on Spot, 11.6*32mm	1.5mL Amber Snap Ring Vial, 11.6*32mm	1.5mL Amber Snap Ring Vial w/Write-on Spot, 11.6*32mm

2.Micro-Vials & Micro-Inserts


Part No.	I300	IV250-I(Economy) IV250	IP250-I(Economy) IP250	VP101	VP103
Description	300uL Micro-Insert, 31*6mm Clear, Flat Bottom, Suits for 11mm Snap Ring Vials	250uL Conical Micro-Insert, 31*5.7mm, Suits for 11mm Snap Ring Vials	250uL Micro-Insert with Mandrel Interior, & Polymer Feet, 29*5.7mm, Suits for 11mm Snap Ring Vials	0.3mL Clear PP Snap Ring Micro-Vial, 11.6*32mm	0.3mL Amber PP Snap Ring Micro-Vial, 11.6*32mm

3.11mm Snap-top Cap With Septa


Part No.	SC101101	SC1011102	SC101103	SC1044102
Description	White PTFE/Red Silicone Septa, 11mm Natural Snap-top Polyethylene Cap, 6mm Centre Hole	Pre-slit White PTFE/Red Silicone Septa, 11mm Blue Snap-top Polyethylene Cap, 6mm Centre Hole	White PTFE/Red Silicone Septa, 11mm Red Snap-top Polyethylene Cap, 6mm Centre Hole	Pre-slit Blue PTFE/White Silicone Septa, 11mm Blue Snap-top Polyethylene Cap, 6mm Centre Hole

PRODUCT SHOW:

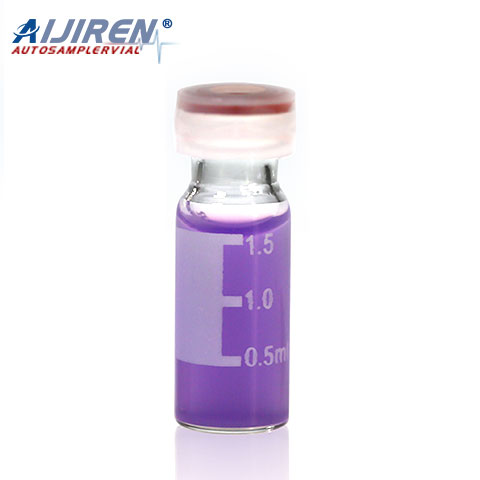

1.5mL Snap Ring Vial w/Write-on Spot, 11.6*32mm

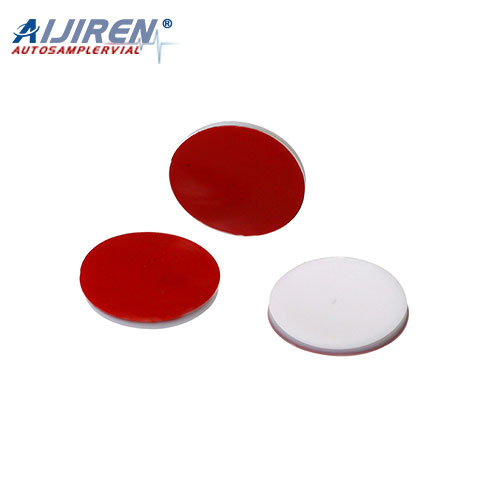

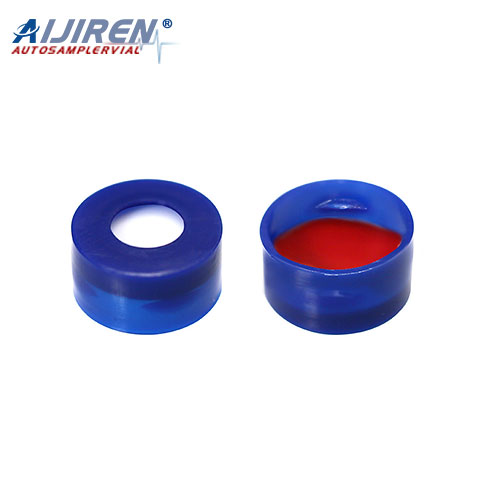

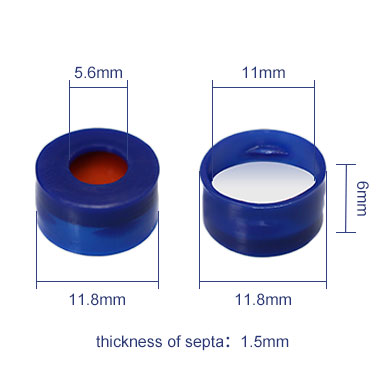

PTFE/Silicone Septa, 11mm Snap-top Polyethylene Cap, 6mm Centre Hole

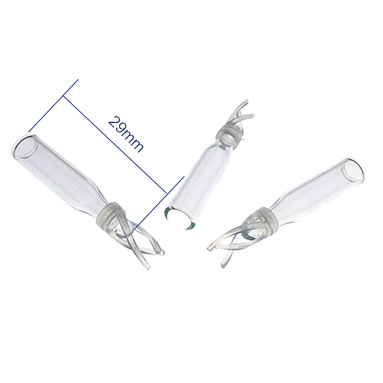

250uL Micro-Insert with Mandrel Interior & Polymer Feet, 29*5.7mm

Application:

According to different material, they can be devided into two types. One is domestic borosilicate,the other one is USP type1. Which can meet the requirement of different customers.
