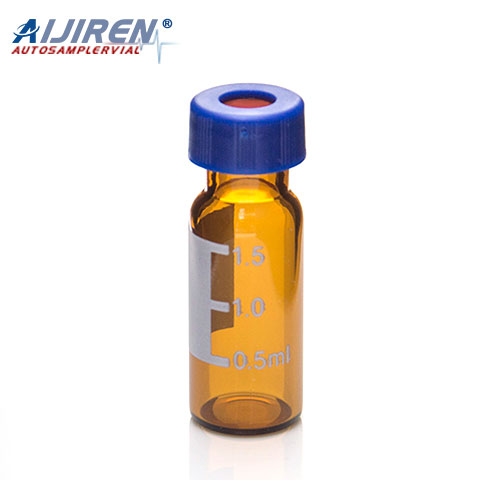

1.5mL 9mm Short Thread Vial ND9

Master The Core Technology Of Production Vials

Product Description:

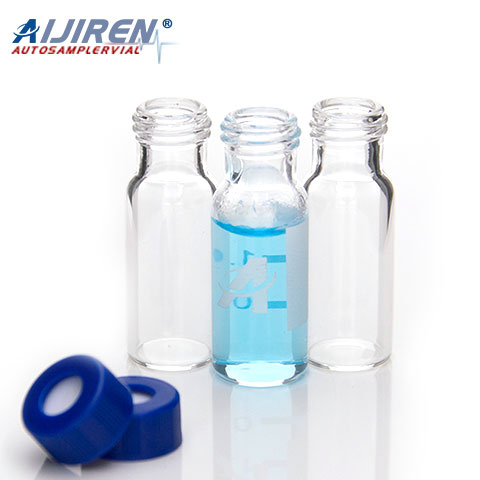

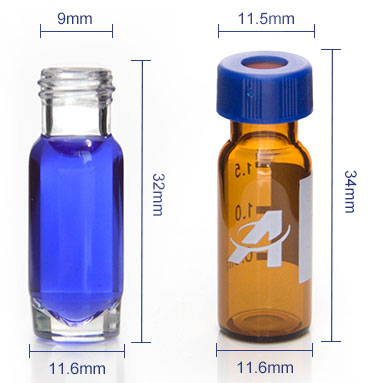

1.Short screw Thread ND9 vials(11.6*32mm) for GC and HPLC.
2.Available with black or blue screw caps with 9mm thread.

3.Available as closed top screw seals or with centre hole.
4.Vials with integrated Micro-Insert are also available.

5.Plastic Vials ND9 and Plastic Micro-Vials ND9.
6.Short screw Thread ND9 vial is designed to ensure proper centering of limited volume inserts,
eliminating missed injections.
7.Vials are manufactured of Clear or Amber borosilicate glass.
8.Vials have a 40% larger opening for easier sample preparation .

Features:

1)9mm screw vials can be used on all common autosampler

2)"Short screw, long neck" to make the autosampler easier to capture

3)9mm wider opening for easy punctur

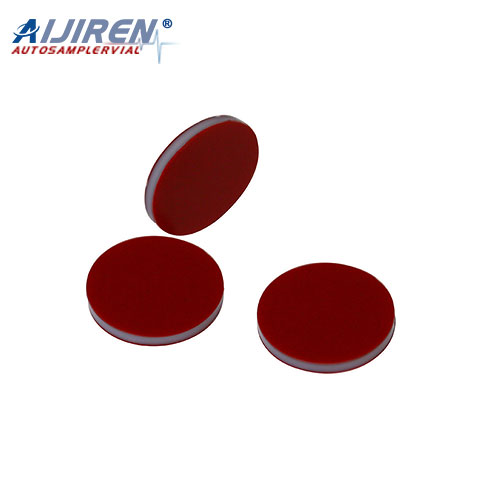

4)9mm PTFE/silicone septa, has excellent chemical inertness, acid and alkali resistance

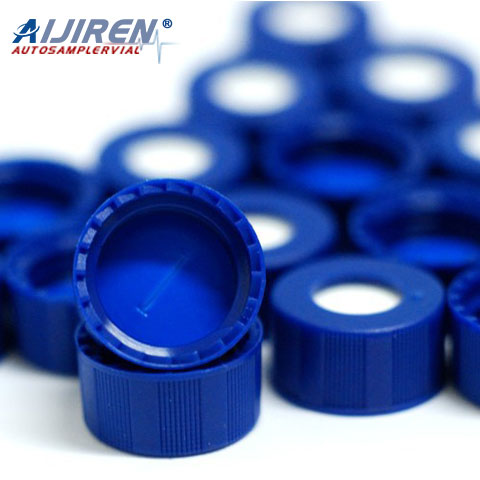

5)9mm screw blue open top pp caps

Technical parameter:

1. 9mm Short Thread Vials ND9


Part No.	V917(Economy) V913	V927(Economy) V923	V937(Economy) V935	V947(Economy) V945	VP923

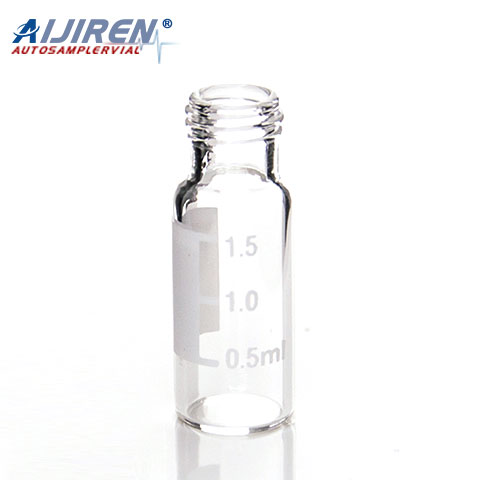

Description	1.5mL Clear Short Thread Vial, 9mm Thread, 11.6*32mm	1.5mL Clear Short Thread Vial, w/Write-on Spot, 9mm Thread, 11.6*32mm	1.5mL Amber Short Thread Vial, 9mm Thread, 11.6*32mm	1.5mL Amber Short Thread Vial, w/Write-on Spot, 9mm Thread, 11.6*32mm	1.5mL PP Short Thread Vial, Transparent, 9mm Thread, 11.6*32mm

2. Micro-Vials & Micro-Inserts


Part No.	VL913	VL923	VL935	VL945	VR913

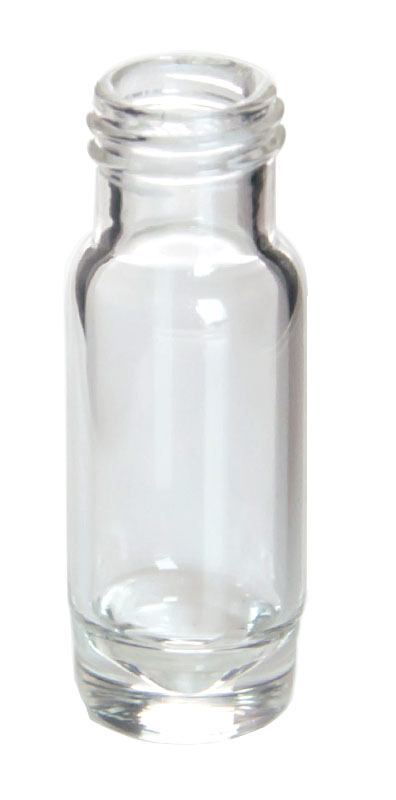

Description	0.3mL Clear Screw Vial Integrated w/Micro-Insert, Base Bonded, 11.632mm Base Bonded*	0.3mL Clear Screw Vial Integrated w/Micro-Insert, w/Write-on Spot, Base Bonded, 11.632mm Base Bonded*	0.3mL Amber Screw Vial Integrated w/Micro-Insert, Base Bonded, 11.632mm Base Bonded*	0.3mL Amber Screw Vial Integrated w/Micro-Insert, w/Write-on Spot, Base Bonded, 11.632mm Base Bonded*	1.5mL High Recovery with 30μL Reservoir Clear Short Thread Vial, 9mm Thread, 11.6*32mm


Part No.	I300	IV250-I(Economy) IV250	IP250-I(Economy) IP250	VP91	VP93

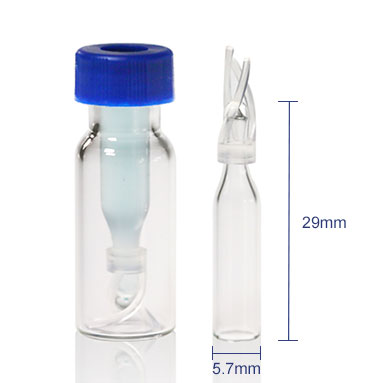

Description	300uL Micro-Insert, 31*6mm Clear, Flat Bottom, Suits for 9mm Vials	250uL Conical Micro-Insert, 31*5.7mm, Suits for 9mm Vials	250uL Micro-Insert with Mandrel Interior, & Polymer Feet, 29*5.7mm, Suits for 9mm Vials	0.3mL Clear PP Short Screw Micro-Vial, 9mm Thread, 11.6*32mm	0.3mL Amber PP Short Screw Micro-Vial, 9mm Thread, 11.6*32mm

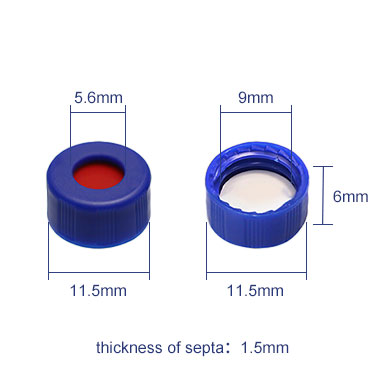

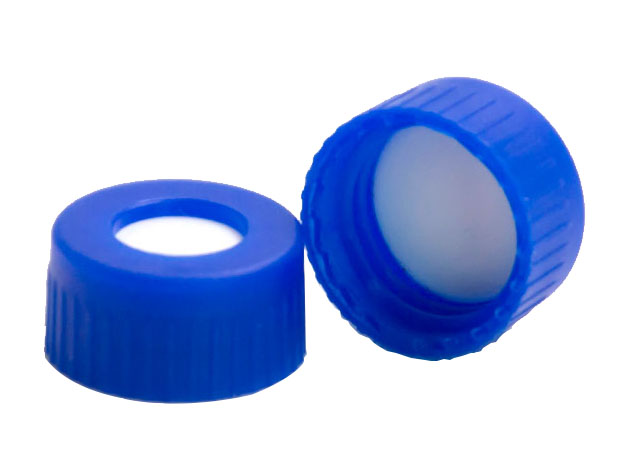

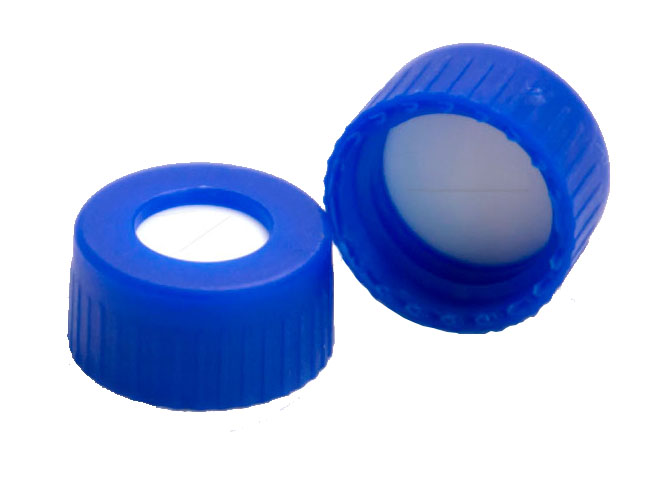

3. 9mm PP Short Thread Caps With Septa


Part No.	SC9191	SC9291	SC9391	SC94491	SC9292
Description	White PTFE/Red Silicone Septa, 9mm Blue Short Screw Polypropylene Cap, 6mm Centre Hole	Red PTFE/White Silicone Septa, 9mm Blue Short Screw Polypropylene Cap, 6mm Centre Hole	Red PTFE/White Silicone/Red PTFE Septa, 9mm Blue Short Screw Polypropylene Cap, 6mm Centre Hole	Pre-slit Blue PTFE/White Silicone Septa, 9mm Blue Short Screw Polypropylene Cap, 6mm Centre Hole	Red PTFE/White Silicone Septa, 9mm Blue Short Screw Polypropylene Cap, Colsed-top


Part No.	SC9193	SC9295	SC9297	B-SC9291	B-SC92291
Description	White PTFE/Red Silicone Septa, 9mm Black Short Screw Polypropylene Cap, 6mm Centre Hole	Red PTFE/White Silicone Septa, 9mm Red Short Screw Polypropylene Cap, 6mm Centre Hole	Red PTFE/White Silicone Septa, 9mm Yellow Short Screw Polypropylene Cap, 6mm Centre Hole	White PTFE/White Silicone Septa, 9mm blue Short Screw Polypropylene Cap, 6mm Centre Hole Bonded	Pre-slit White PTFE/White Silicone Septa, 9mm blue Short Screw Polypropylene Cap, 6mm Centre Hole Bonded
